Dialogue between humans and nature

José Rodríguez Alvira

We must begin by explaining a phenomenon known as *harmonic series*. When we hear a sound produced by a musical instrument we are actually listening to a multiplicity of sounds that form the harmonic series.

In the seventeenth century French Joseph Sauveur (1653-1716) and the Englishman Thomas Pigot (1657-1686) noted that the strings vibrate in sections, a phenomenon that explains why one string produces this multiplicity of sounds.

The video below shows the spectrum analysis of a C two octaves below middle C (C2):

Notes:

- We have written the musical notes corresponding to the first 16 harmonics of the series. It is obvious that many harmonics follow these first harmonics.
- The first harmonic or fundamental is not necessarily the strongest harmonic.
- The balance between the harmonics varies constantly. This coupled with the immense amount of harmonics explains the difficulty we encounter in synthesizing sounds.

The dialogue between man and nature to which we refer in the subtitle of this article is closely related to the harmonic series. We could say that nature speaks with the harmonic series and humans answer with tuning systems.

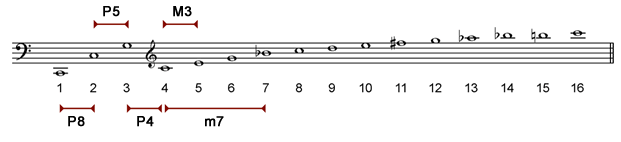

The harmonic series defines many of our intervals. Listed below are the octave, fifth, fourth, major third and minor seventh:

We can calculate mathematical ratio (or size) by dividing the frequencies of notes. Here we use the frequency of some harmonics to calculate the size of intervals:

Interval | Ratio | From the harmonics |
---|---|---|

Octave | 130 / 65 = 2 | 1 and 2 |

Fifth | 195 / 130 = 1.5 | 2 and 3 |

Fourth | 260 / 195 = 1.33 | 3 and 4 |

Major third | 325 / 260 = 1.25 | 4 and 5 |

Minor seventh | 455 / 260 = 1.75 | 4 and 7 |

Interestingly, we can calculate the values using harmonic numbers:

Interval | Ratio | From the harmonics |
---|---|---|

Octave | 2 / 1 = 2 | 1 and 2 |

Fifth | 3 / 2 = 1.5 | 2 and 3 |

Fourth | 4 / 3 = 1.33 | 3 and 4 |

Major third | 5 / 4 = 1.25 | 4 and 5 |

Minor seventh | 7 / 4 = 1.75 | 4 and 7 |

The mathematical ratios can be used to calculate the frequency of notes. From an A 440 we calculate the frequency of C#, E and G:

A | C# (major third) | E (perfect fifth) | G (minor seventh) |

440 | 440 x 1.25 = 550 | 440 x 1.5 = 660 | 440 x 1.75 = 770 |

If we divide by the mathematical ratio we obtain descending intervals. Here we calculate the frequency of an F, a major third below A:

These concepts are needed to understand the different tuning systems ...
